Eagle DTF 70R
The Eagle DTF 70R is a cutting-edge DTF printer designed to deliver exceptional performance in sheet printing. With a large printing area of 700x500mm and the ability to mount up to 8 Ricoh Gen 5 industrial print heads, this machine ensures superior print quality and high production speed, thanks to the advancement carpet.
Featuring advanced functions and an intuitive user interface, the Eagle DTF 70R is the ideal solution for professionals seeking high-quality print results and reliable performance.
As with all Eagle printers, custom modifications can be made upon request to meet specific production needs or integrate into automated print lines.
Optional - soluzioni personalizzate
Tailored solutions
We can create custom printers to satisfy your needs for special processing, integration with automatic printing lines, integration with load and unload equipment or customization for extra size materials.
Optional - Tappeto aspirato
Vacuum belt
Eagle printers can be equipped with vacuum belt that help to keep object in place and avoid movements during the print.

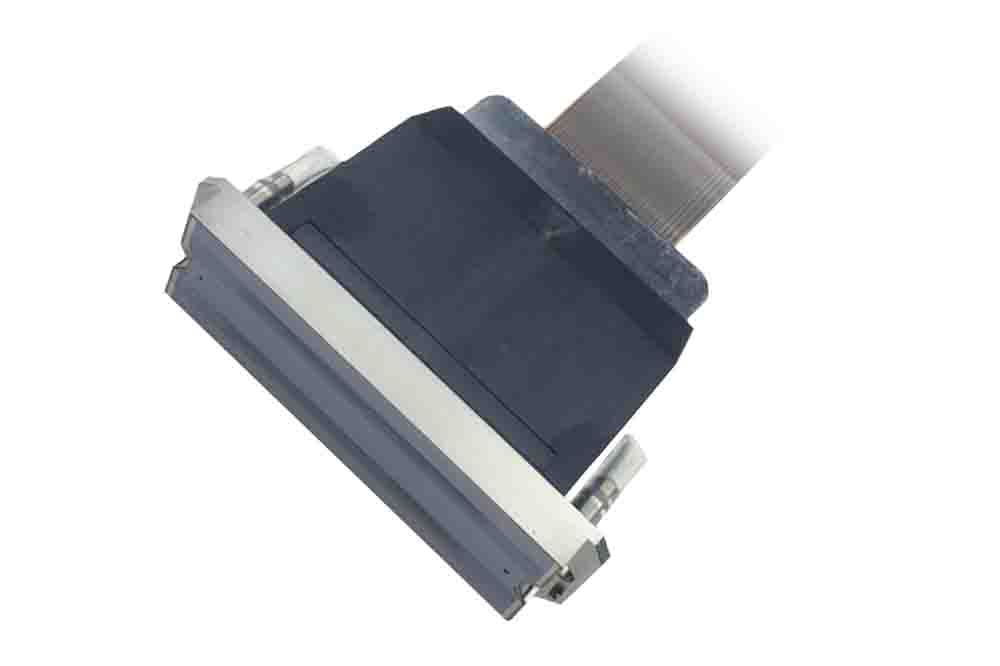

key - teste ricoh G5
High performance printheads
Ricoh G5 printheads allow to have a better quality compared to regular printheads.
key - WhiteRIP TX
Dedicated software RIP
WhiteRIP is the professional printing software developed by EV Network s.r.l that has specific function for textile and industrial printing to increase output and reduce preparation time like inline printing and template management.
key - Sistema inchiostri aperto
Open ink system
The under pressure ink system avoid the formation of air bubble on the circuit, the white ink is also on constant recirculation to avoid the sedimentation. The result is a global cost reduction with reduced maintenance downtime and less print head cleaning required.
| Eagle DTF 70R | |
|---|---|
| Printing Technology | 4 PrintheadsRicoh Gen 5 |
| Resolutiom |
Min:300 x 150 dpi Max: 1200 x 2400 dpi |
| Inks | Inchiostro in taniche |
| Available colors | CMYK and White |
| Interfaces | Ethernet |
| Power Supply | AC 220V 16A |
| Operating Environment | 20-25° Humidity 35-80% without condensation |
| Vacuum Table | Optional |
| Optionals |
Customization and integration with automations
|
